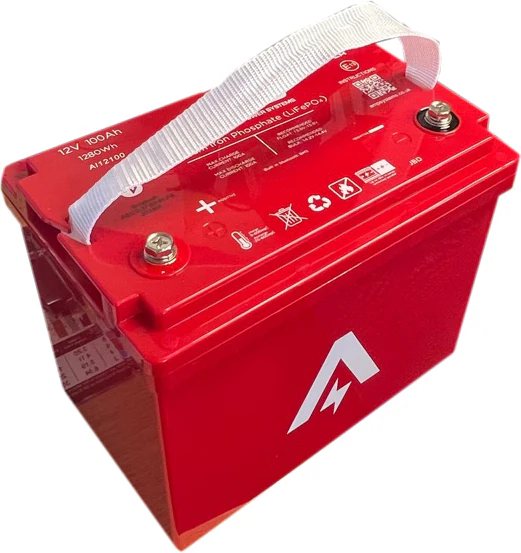

AMPS AL12100 Lithium Iron Phosphate Battery with Bluetooth
Item: 20376
MPN: AL12100
AMPS AL12100 Lithium Iron Phosphate Battery with Bluetooth
Available
Log in to view prices
Tweet
Product Description
Limited five year warranty from date of purchase. Warranty does not cover Bluetooth (Communication or app)
- LiFePO4 12V (nominal) 100Ah 25 deg C Lithium Deep cycle
- Weight - 9.6kg
- Dimensions - 165 x 210 x 260 mm (W x H x D)
- Maximum continuous charge rate = 100A
- Maximum continuous discharge rate =100A
- Battery must be safely charged within units parameters
- Max charge V=14.6V, Recommended =14.4V, Float V=13.8V
- Cut off voltage 11V / cutoff temperature 60 deg C
- Charge Curve style CC/CV
- Operational temperature 0Deg to 60 deg C (adjustable)
- internal consumption: Operational = 10mA, Dormant 0.1mA
- 8mm ring terminal battery studs / washer
- Can be put in series 12V | 24V | 36V | 48V
- 0 Deg C charge circuit disconnect
- -20Deg C discharge circuit disconnect
- Operating Voltage - 13.6v
- With Bluetooth
