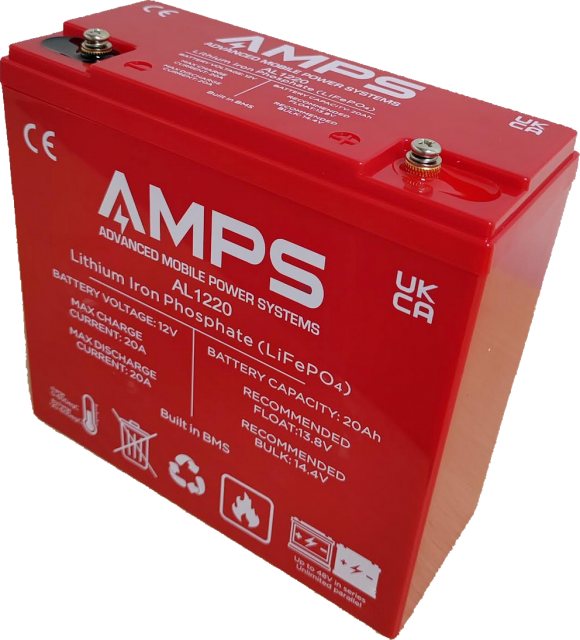

AMPS AL1220 Lithium Iron Phosphate Battery
Item: 20371
MPN: AL1220
AMPS AL1220 Lithium Iron Phosphate Battery
Available
Log in to view prices
Tweet
Product Description
Can be put in series up to 48V -unlimited parallel.
Limited five year warranty from date of purchase covers the purchaser/protects you against manufacturing defects. It does not cover negligence, improper use, natural expected changes in capacity or the operation of bluetooth (either the app itself or the connectivity to the app): -
12V 20Ah LiFePO4 battery
- Maximum continuous charge rate = 10A
- Maximum continuous discharge rate = 20A
- Battery must be safely charged within units parameters
- Max charge V=14.6V, Recommended =14.4V, Float V=13.8V
- 4mm ring terminal battery studs / washer
- Can be put in series 12V | 24V | 36V | 48V
- Dimensions : 19cm x 7.7cm x 18.7cm
- Weight - 2kg
- Operating Voltage - 13.6v
- Nominal Voltage - 12v
