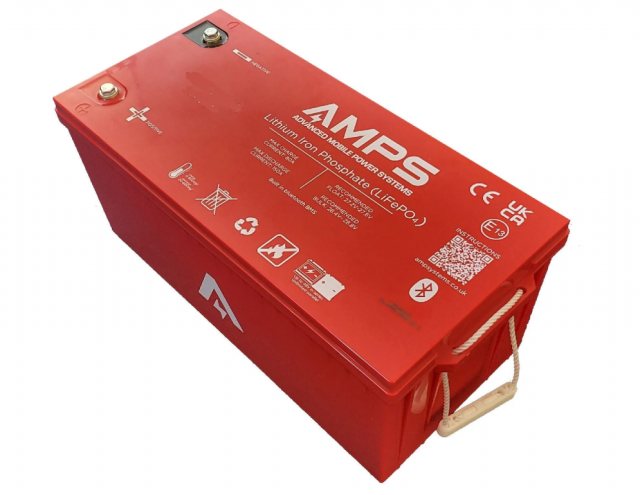

AMPS AL12300 Lithium Iron Phosphate Battery with Bluetooth

Coming Soon
AMPS AL12300 Lithium Iron Phosphate Battery with Bluetooth

Item: 20379

MPN: AL12300

AMPS AL12300 Lithium Iron Phosphate Battery with Bluetooth

available Available

Log in to view prices

Product Description

Limited five year warranty from date of purchase. Warranty does not cover Bluetooth (Communication or app)

  • LiFePO4 12V (nominal) 300Ah 25 deg C Lithium Deep cycle
  • Dimensions: 235 x 207 x 532 mm (W x H x D)
  • Weight 28kg
  • Maximum continuous charge rate  = 150A
  • Maximum continuous discharge rate = 300A
  • Battery must be safely charged within units parameters
  • Max charge V=14.6V, Recommended =14.4V, Float V=13.8V
  • Cut off voltage 11V / cutoff temperature 60 deg C
  • Charge Curve style  CC/CV
  • Operational temperature 0Deg to 60 deg C (adjustable)
  • internal consumption: Operational = 10mA, Dormant 0.1mA
  • 8mm ring terminal battery studs / washer
  • Can be put in series 12V | 24V | 36V | 48V
  • 0 Deg C charge circuit disconnect
  • -20Deg C discharge circuit disconnect
  • Operating Voltage - 13.6v
  • With Bluetooth
