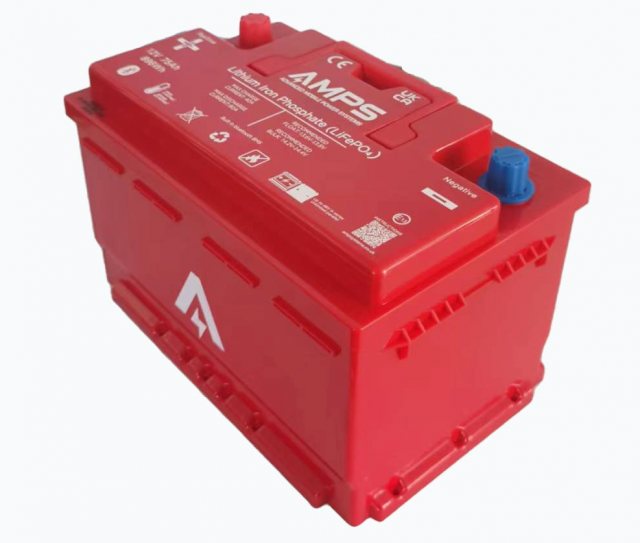

AMPS AL1275 Lithium Iron Phosphate Battery with Bluetooth
Item: 20373
MPN: AL1275
AMPS AL1275 Lithium Iron Phosphate Battery with Bluetooth
Available
Log in to view prices
Tweet
Product Description
Can be put in series up to 48V -unlimited parallel.
Limited five year warranty from date of purchase covers the purchaser/protects you against manufacturing defects. It does not cover negligence, improper use, natural expected changes in capacity or the operation of bluetooth (either the app itself or the connectivity to the app
- Battery Power - 12V 75Ah
- Dimensions - 176 x 172 x 280 mm (W x H x D)
- Weight - 8kg
- Operating Voltage - 13.6v
- LiFePO4 12V (nominal) 75Ah 25 deg C Lithium Deep cycle
- Maximum continuous charge rate = 60A
- Maximum continuous discharge rate =140A
- Battery must be safely charged within units parameters
- Max charge V=14.6V, Recommended =14.4V, Float V=13.8V
- Cut off voltage 11V / cutoff temperature 60 deg C
- Charge Curve style CC/CV
- Operational temperature 0Deg to 60 deg C (adjustable)
- Internal consumption: Operational = 10mA, Dormant 0.1mA
- 8mm ring terminal battery studs / washer
- 0 Deg C charge circuit disconnect
- -20Deg C discharge circuit disconnect
-
E marking - E13 - only battery on UK market.
- With Bluetooth
