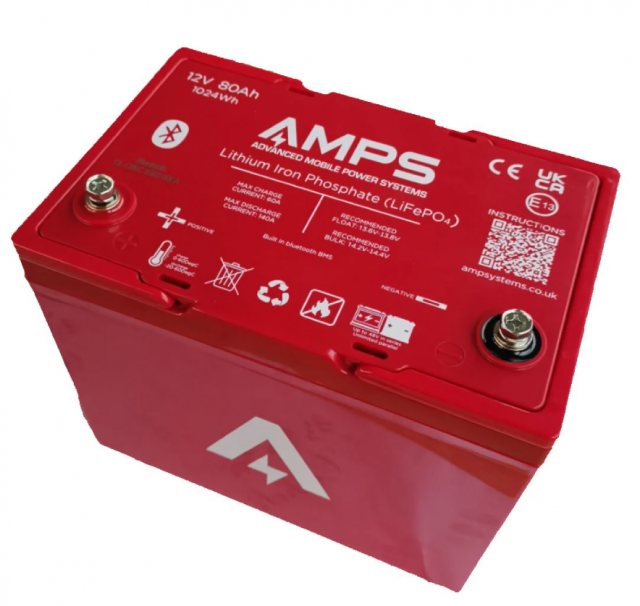

AMPS AL1280 Lithium Iron Phosphate Battery with Bluetooth
Item: 20374
MPN: AL1280
AMPS AL1280 Lithium Iron Phosphate Battery with Bluetooth
Available
Log in to view prices
Tweet
Product Description
Can be put in series up to 48V -unlimited parallel.
Limited five year warranty from date of purchase covers the purchaser/protects you against manufacturing defects. It does not cover negligence, improper use, natural expected changes in capacity or the operation of bluetooth (either the app itself or the connectivity to the app
- LiFePO4 12V (nominal) 80Ah 25 deg C Lithium Deep cycle
- Dimensions - 165 x 210 x 260 mm (W x H x D)
- Weight - 8.5kg
- Maximum continuous charge rate = 100A
- Maximum continuous discharge rate =100A
- Battery must be safely charged within units parameters
- Max charge V=14.6V, Recommended =14.4V, Float V=13.8V
- Cut off voltage 11V / cutoff temperature 60 deg C
- Charge Curve style CC/CV
- Operational temperature 0Deg to 60 deg C (adjustable)
- internal consumption: Operational = 10mA, Dormant 0.1mA
- 8mm ring terminal battery studs / washer
- Can be put in series 12V | 24V | 36V | 48V
- 0 Deg C charge circuit disconnect
- -20Deg C discharge circuit disconnect
- Operating Voltage - 13.6v
- Nominal Voltage - 12v
- With Bluetooth
