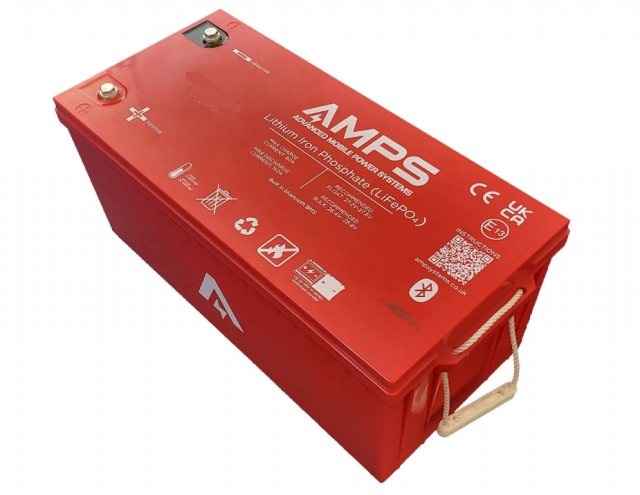

AMPS AL24150 Lithium Iron Phosphate Battery with Bluetooth

Coming Soon
AMPS AL24150 Lithium Iron Phosphate Battery with Bluetooth

Item: 20381

MPN: AL24150

AMPS AL24150 Lithium Iron Phosphate Battery

available Available

Log in to view prices

Product Description

Can be put in series up to 48V -unlimited parallel.

Limited five year warranty from date of purchase covers the purchaser/protects you against manufacturing defects. It does not cover negligence, improper use, natural expected changes in capacity or the operation of bluetooth (either the app itself or the connectivity to the app): -

12V 20Ah LiFePO4 battery with non-bluetooth BMS

  • LiFePO4 24V (nominal) 150Ah 25 deg C Lithium Deep cycle
  • Dimensions - 235 x 207 x 532 mm (W x H x D)
  • Weight - 28kg
  • Maximum continuous charge rate  = 80A
  • Maximum continuous discharge rate = 150A
  • Battery must be safely charged within units parameters
  • Max charge V=29.2V, Recommended =28.8V, Float V=27.6V
  • Cut off voltage 22V / cutoff temperature 60 deg C
  • Charge Curve style  CC/CV
  • Operational temperature 0Deg to 60 deg C (adjustable)
  • internal consumption: Operational = 10mA, Dormant 0.1mA
  • 8mm ring terminal battery studs / washer
  • Can be put in series 12V | 24V | 36V | 48V
  • Operating Voltage - 27.2v
  • With Bluetooth
