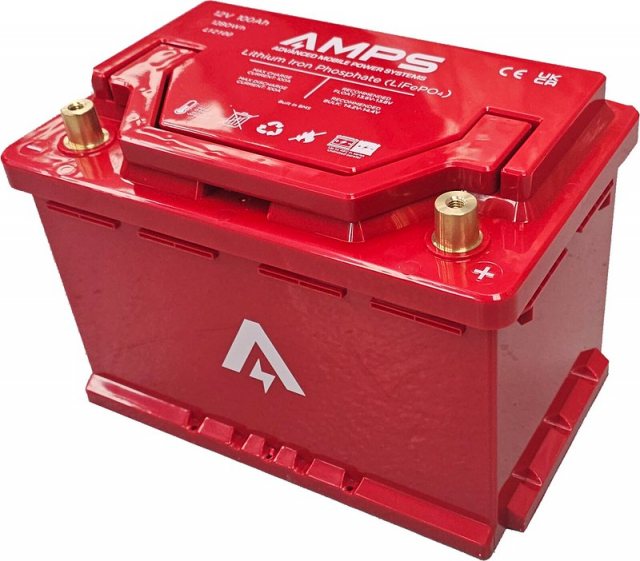

AMPS L12100 Lithium Iron Phosphate Battery

Product Description

12V 105Ah LiFePO4 - Lithium Iron Phosphate Battery L12100

5 years warranty

Specification:-

• LiFePO4 12V (nominal) 105Ah 25 deg C Lithium Deep cycle
• 1344Wh
• Maximum continuous charge rate (1C) = 100A
• Maximum continuous discharge rate (1C)  =100A
• Controlled overload with charge and discharge - for instantaneous charges / loads
• Battery must be safely charged within units parameters
• Max charge V=14.6V, Recommended =14.4V, Float V=13.8V
• Cut off voltage 11V / cutoff temperature 60 deg C
• Charge Curve style  CC/CV
• Operational temperature 0Deg to 60 deg C (adjustable)
• internal consumption: 0.1mA
• 8mm ring terminal battery studs / washer with T1 DIN style - best of both
• Can be put in series 12V | 24V | 36V | 48V
• 0 Deg C charge circuit disconnect
• -20Deg C discharge circuit disconnect

Limited five year warranty from date of purchase.
