Bonus CP3 Power Control Panel OBSOLETE - See 30290 Sargent AC50X

Item: 30294
MPN: ZZZCP3
Bonus CP3 Power Control Panel OSBOLETE See 30290 Sargent AC50X as an alternative
Available
Log in to view prices
Product Description

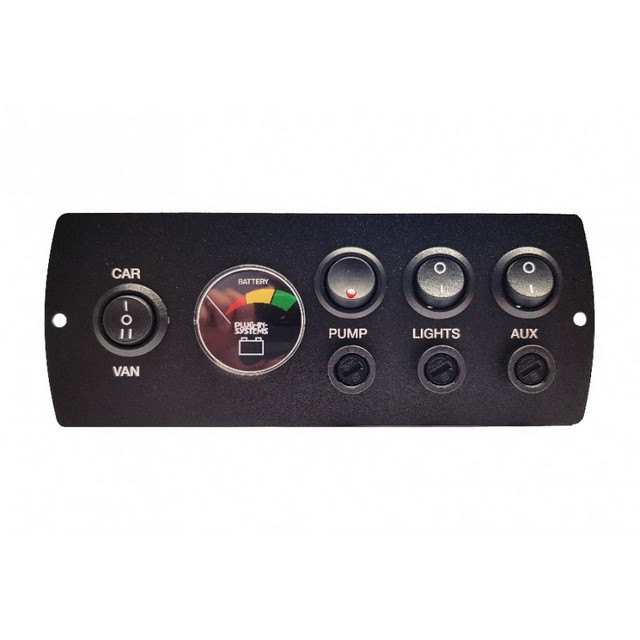

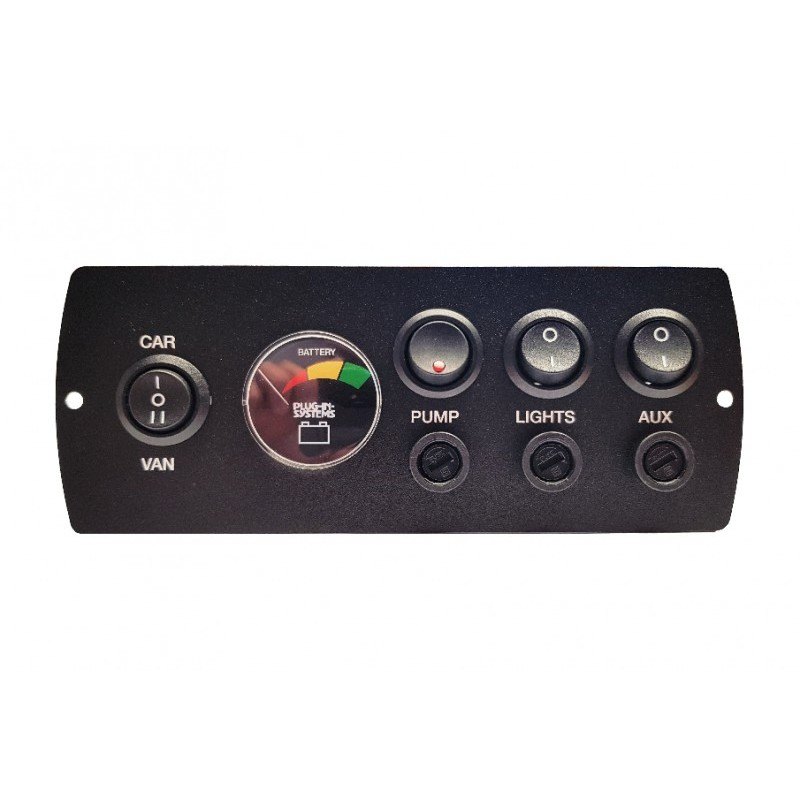

The CP3 control panel from the Bonus Plug-In Power Systems range has 12v distribution with power source selector and an analogue battery meter with 12v outputs fused at 10 amps. It is especially designed for caravan and motorhome installations, simple to install and requiring minimal attention in use.
If cut out in furniture required then the cut out size is:-
150 mm width x 50 mm height with a depth of at least 60 mm required for fuse holders and harness/cable attachment to rear of panel. Also 4.8 mm insulated female spade terminals needed for connection on the rear of the panel.
