Dometic Midi HEKI Style Roof Vent (700 x 500)

Hinge and lock integrated into frame for improved safety and mechanical reliability

Noise level is reduced by up to 20 % (3 dB)

New shape means less dirt between roof and dome

Click on image to enlarge

Please select option to view code

MPN: 9104120058

Dometic Midi HEKI Style Roof Vent (700 x 500) with or without forced ventilation

Available

Product Description

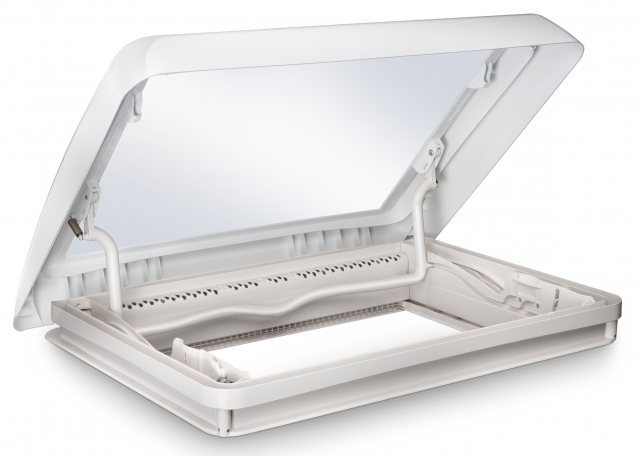

Roof window with lever, white, with or without forced ventilation, 700 x 500 mm

Open up your vehicle to fresh air and light! This upgraded version of the Midi Heki Style roof light has improved safety features, aerodynamics, appearance and maintenance. With well-proven benefits such as the darkening blind and fly screen, as well as hassle-free cleaning, it ensures comfort and convenience while you're on the road.

Separately adjustable darkening and fly screens
Well insulated dome with double acrylic glazing
Improved aerodynamics reduce by 20 %
Hinge and lock integrated into frame for improved safety and mechanical reliability
Opens to three positions: fully open, half-open and bad-weather position
With or without forced ventilation
Modern design for stylish interior and exterior appearance

View other products in Dometic »

Technical Information

Dimensions:

Dimensions product depth 617 mm
Dimensions product height 617 mm
Dimensions product width : 846 mm
Dimensions ordered width : 700 mm
Dimensions ordered height : 500 mm
Net weight : 8.40 kg
Dimensions opening width : 585 mm
Dimensions opening height : 404 mm
Standard mount. material thickness 1 min 30 mm
Standard mount. material thickness 1 max 34 mm
Possible material thickness 1 min 25 mm
Possible material thickness 1 max 29 mm
Cut out height : 500 mm
Cut out width : 700 mm
